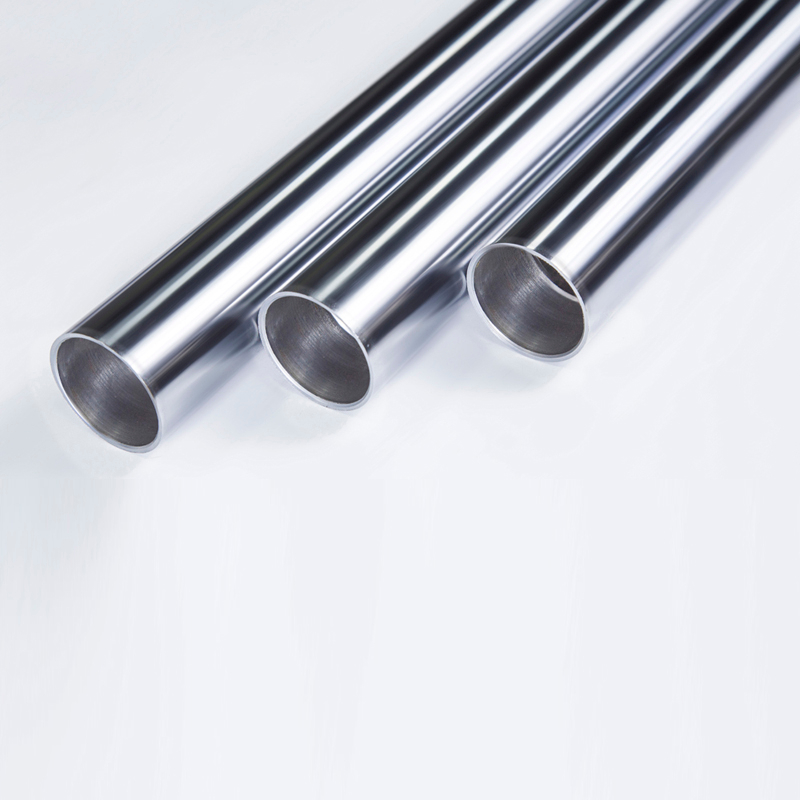

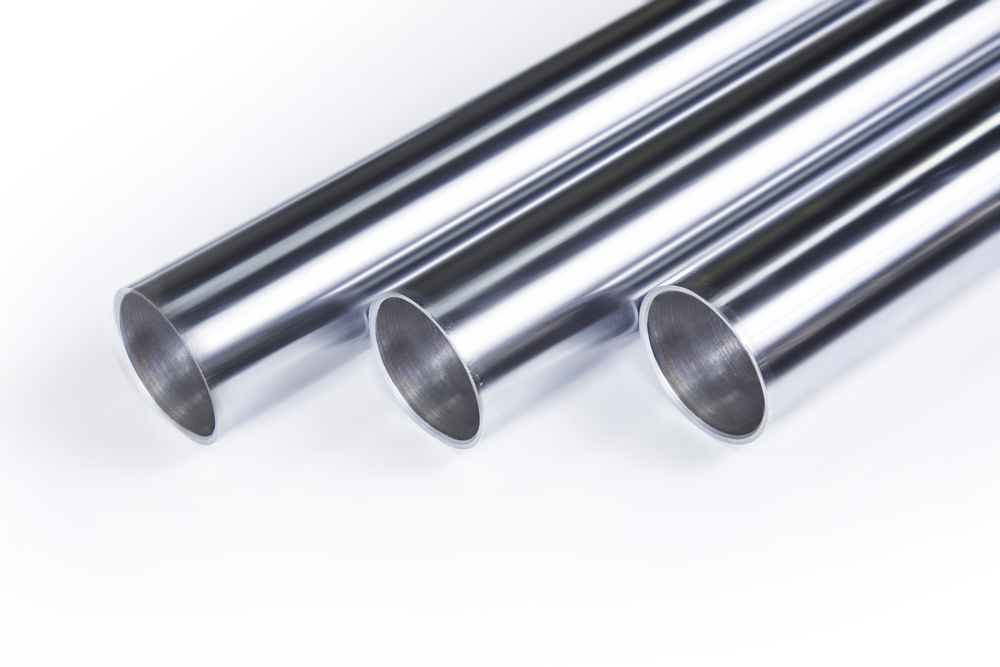

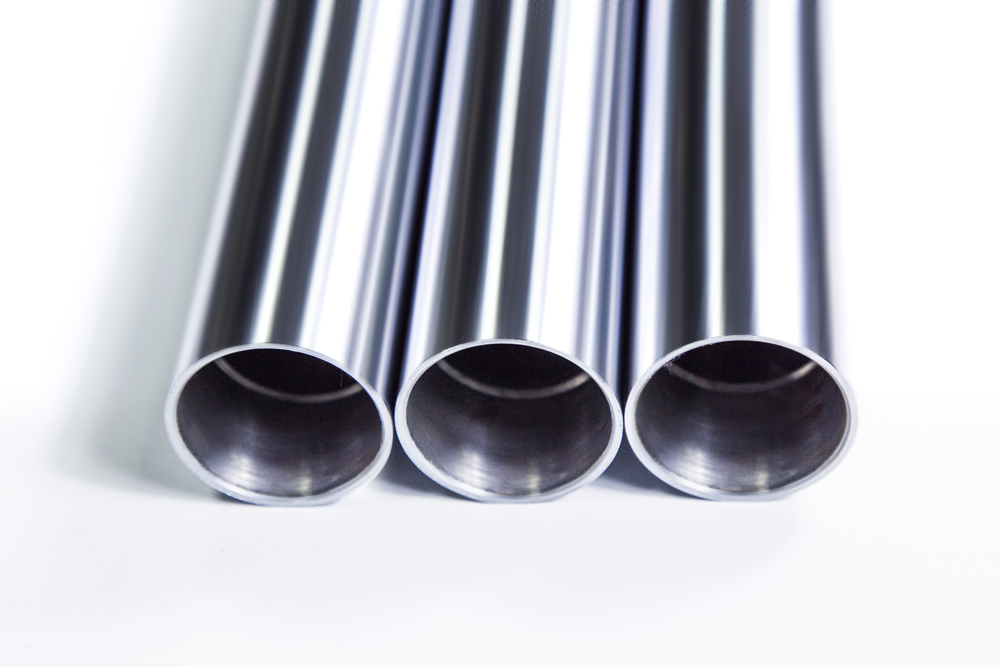

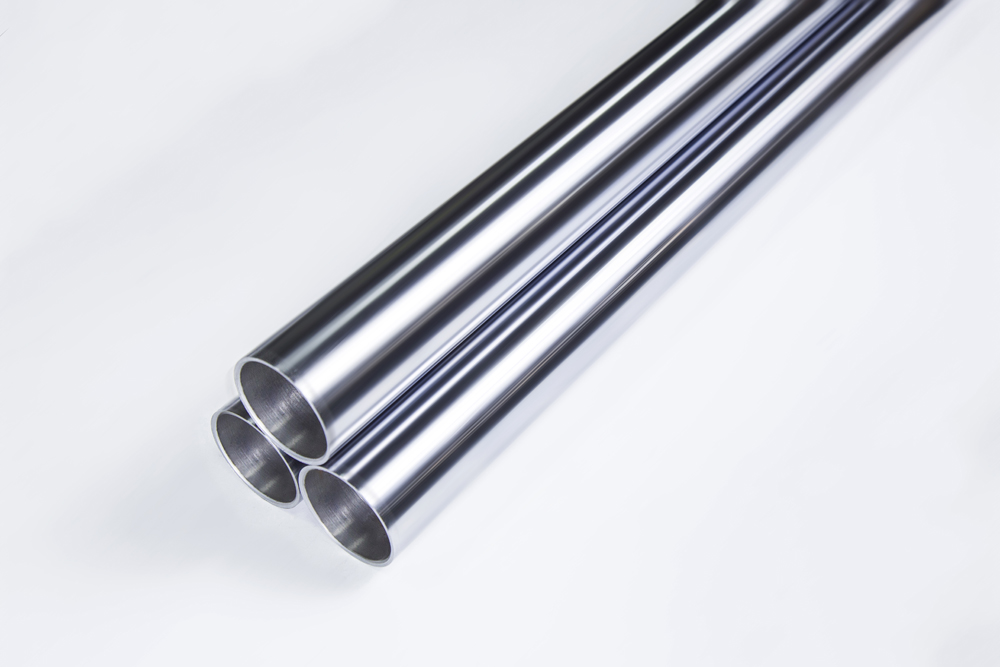

AD chrome-plated hollow shaft can keep the full function of the solid shaft, and due to its hollow structure, it can greatly reduce the weight of the equipment.
Main uses: all kinds of electronic equipment, mechanical equipment guide rods, transmission shafts, pillars.
Features: Good wear resistance, not easy to rust, high precision, and good strength.
 |  |
 |  |
Model | Inner diameter（d2） | Outer diameter（d1） | Outer diameter Tolerance（um） | Weight（kg/m） | Effective case depth（mm） |
ADP16 | 10 | 16 | -7~-20 | 1.25 | 1.6 |
ADP20 | 14 | 20 | 1.34 | 1.8 | |
ADP25 | 16 | 25 | 2.28 | 2.1 | |
ADP30 | 17 | 30 | 3.77 | 2.4 | |
ADP35 | 19 | 35 | -9~-25 | 5.32 | 2.5 |
ADP40 | 20 | 40 | 7.39 | 2.6 | |
ADP50 | 25 | 50 | 11.55 | 2.9 | |
ADP60 | 30 | 60 | 15.2 | 3.0 |
